Refitting

- Fold the rear seat cushion over.

1. Insert the tool (1a) in the groove, lift and remove the access cover to the fuel pump assembly (1b).

Position the tool and apply leverage as indicated in the lever to prevent the cover tab deforming.

1. Disconnect the electrical connection for the fuel pump.

- Reduce the fuel pressure by starting the engine a few times.

2. Disconnect the rapid connector for the fuel supply pipe.

3. Disconnect the quick connector for the fuel return pipe.

1. Fit the tool (1a), undo the ring nut securing the submerged pump assembly (1b) and remove it.

- Remove the seal which must be replaced each time the ring nut securing the submerged pump assembly is removed.

Position a suitable container for collecting the fuel contained in the submerged pump assembly.

Removing

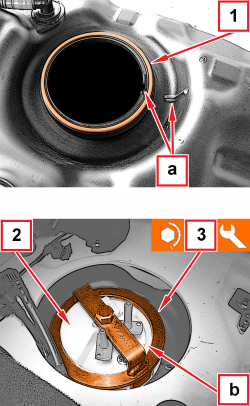

1. Fit a new seal ring on the fuel tank.

2. Place the submerged pump assembly in its housing taking care to ensure that the references (a) and (b) in the diagram are aligned.

3. Tighten the ring nut securing the submerged pump assembly to the prescribed torque using the tool and a suitable torque wrench.

- Connect the quick connector for the fuel return pipe.

- Connect the rapid connector for the fuel supply pipe.

- Connect the electrical connection for the fuel pump.

- Close the access cover on the fuel pump assembly.

- Place the rear seat cushion back in position.
