Removing
(
Refitting
)
- Position the vehicle on a lift.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift. |
|
|
|
  |

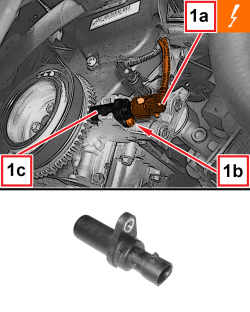

1. Disconnect the electrical connection (1a), undo the bolt (1b) and remove the engine rpm sensor (1c).
|
  |
Refitting
(
Removing
)
1. Place the engine rpm sensor (1a) back in its housing, tighten the bolt (1b) to the recommended torque and connect the electrical connection (1c).
|
|
|
|
|
|
- Remove the vehicle from the lift. |
