Removing
(
Refitting
)
- Position the vehicle on a lift.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift. |
|
|
|
|
  |

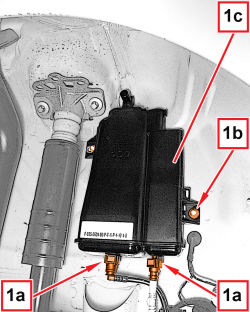

1. Disconnect the rapid connectors for the inlet and outlet pipes (1a), undo the nuts (1b) and remove the active charcoal filter for the fuel vapours (1c). |
|
|
Refitting
(
Removing
)
- Place the active charcoal filter for the fuel vapours in position, tighten the nuts and connect the rapid connectors for the inlet and outlet pipes. |
|
|
|
|
|
|
- Remove the vehicle from the lift. |
