Removing
(
Refitting
)
- Position the vehicle on a lift.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift. |
|
|
|
  |
1. Working underneath the vehicle, open the engine retaining clips to the intake chamber. |
|
|
|
Op. 1056B65 SOUND INSULATING COVER FOR INJECTOR ASSEMBLY - R.R. |
|
|
|
|
|
Op. 1048A50 LOWER ENGINE BLOCK - R.R. CLEAN SEALING SURFACES AND APPLY SEALANT |
|
|
Op. 1084B40 ENGINE OIL DELIVERY PIPE TO TURBOCHARGER - R + R |
|
|
Op. 1088D50 ENGINE COOLANT OUTLET PIPE FROM TURBOCHARGER - R.R. |
|
|
Op. 1064A27 PIPE BETWEEN VACUUM RESERVOIR AND ACTUATOR CONTROL SOLENOID VALVE - R.R. |
|
|
|
|
|
Op. 1056B60 SINGLE FUEL MANIFOLD PIPE, WITH INJECTORS - R.R. |
|
Op. 1048B25 INTERMEDIATE RIGID PIPE BETWEEN HEAT EXCHANGER AND THROTTLE BODY - R R |
|
Op. 1048B30 AIR SUPPLY HOSE FROM RIGID PIPE TO THROTTLE BODY - REPLACE |
|
|
|
Op. 1032D26 FRONT TIMING PROTECTIVE COVER (UPPER PART) - R.R. |
|
Op. 1032D27 FRONT TIMING PROTECTIVE COVER (LOWER PART) - R.R. |
|
Op. 1008B10 POWER UNIT FRONT SUPPORT FLEXIBLE MOUNTING (TIMING SIDE) - REPLACE |
|
Op. 1008A46 POWERTRAIN ASSEMBLY RIGID MOUNT - TIMING SIDE - R.R. |
|
Op. 1032B10 TOOTHED TIMING BELT - R.R. FOR TIMING OR REPLACEMENT |
|
Op. 1016B12 SINGLE CYLINDER HEAD EXTENSION - R.R. WITH TIMING BELT REMOVED - REPLACE GASKET |
|
  |
1. Undo the screw (1a) and remove the timing belt inner guard (1b). |
  |
1. Disconnect the connector for the coolant supply pipe to the engine oil heat exchanger, thermostat side. 2. Loosen the band and disconnect the radiator engine coolant supply sleeve, thermostat side. 3. Disconnect the degassing pipe quick connector from the thermostat. |
  |
1. Undo the nut (1a) for intermediate fastening of the coolant delivery pipe for engine oil heat exchanger (1b). |
  |
1. Disconnect the electrical connection for the engine coolant temperature sensor.
2. Loosen the band and disconnect the radiator engine coolant delivery pipe, thermostat side. |
  |
1. Undo the screw fixing the water pump return pipe to the cylinder head. |
  |

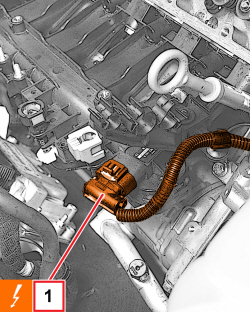

1. Detach the electrical connection for the throttle body.
|
  |
1. Loosen the band (1a) and disconnect the brake servo vacuum pipe (1b), intake chamber side. |
  |
1. Disconnect the quick connector for the fuel vapour pipe from the activated charcoal filter to the solenoid valve, solenoid valve side. 2. Disconnect the quick connector for the oil vapour delivery pipe to the turbocharger intake and remove it. |
  |
1. Disconnect the electrical connection for the aspirated air pressure/temperature sensor.
|
  |
1. Undo the screws (1a) and remove the cylinder head (1b). |
  |
1. Remove the cylinder head locating bushes. 2. Remove the cylinder head gasket. |
|
|
Refitting
(
Removing
)
PARTICOLARI DA SOSTITUIRE SISTEMATICAMENTE
|
