Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
  |

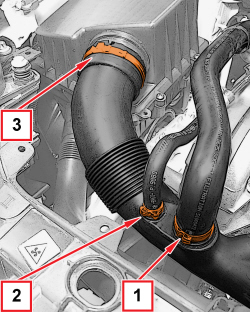

1. Loosen the band and remove the turbocharging air by-pass pipe from the turbocharger air intake pipe. 2. Loosen the band and disconnect the fuel vapour pipe from the turbocharger air intake pipe. 3. Loosen the band and disconnect the turbocharger air inlet pipe, air filter side. |
  |
1. Loosen the band and disconnect the oil vapour supply pipe from the turbocharger air inlet pipe. 2. Loosen the band and disconnect the waste gate valve air recirculation pipe from the turbocharger air inlet pipe. 3. Loosen the band and remove the turbocharger air intake pipe. |
|
|
Refitting
(
Removing
)
- Place the turbocharger air inlet pipe in position and tighten the turbocharger side and air filter side bands. - Connect the waste gate solenoid air recirculation pipe to the turbocharger air inlet pipe and tighten the band. - Connect the oil vapour supply pipe to the turbocharger air inlet pipe and tighten the band. - Connect the fuel vapour pipe to the turbocharger air intake pipe and tighten the band. - Place the supercharging air by-pass pipe in position and tighten the turbocharger air inlet pipe band. |
|
|
|
